Motobilt DIY Beadlock are cut from 3/16 inch high strength steel on both the inner and outer rings. The inner ring sits in the lip of the wheel insted of on top for better centering. The 17 inch beadlock requires 36 bolts, nuts, and flat washers (hardware not included). Motobilt DIY beadlocks are intended for offroad use only. Installation should be performed by a qualified welder. Shipped raw steel.

Specifications

• Simple 17 inch DIY beadlock
• 3/16 inch high strength steel on both the inner and outer rings
• 17 inch beadlock requires 36 bolts, nuts, and flat washers
• Bolt size: 3/8" Grade 8
• Hardware not included
• Ships raw steel

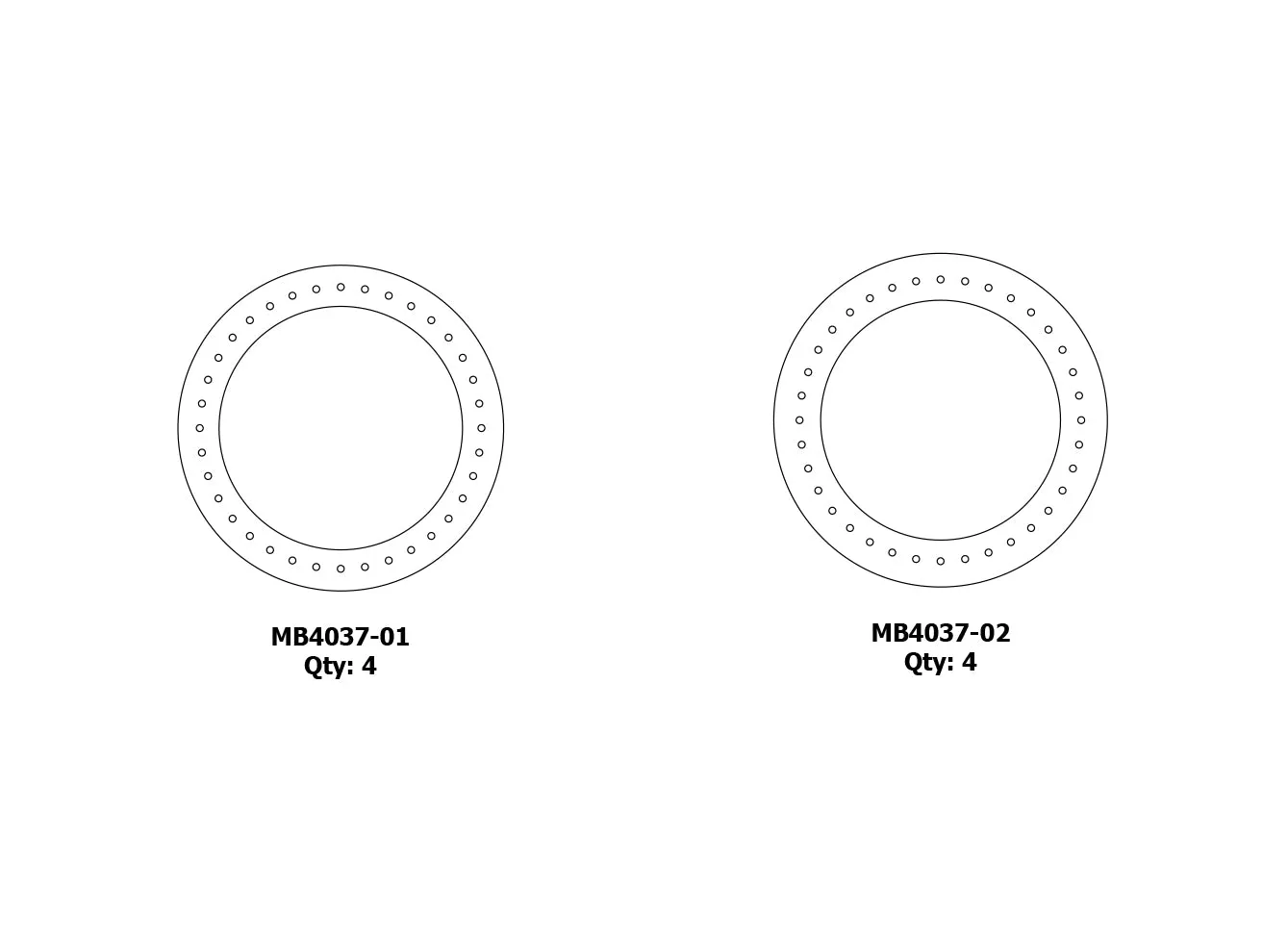

• Sold as kit (4 outer rings, 4 inner)

Note:

• Motobilt DIY bead lock kits are intended for off-road use only
• Installation should be performed by a qualified welder
• Anti-coning rings are 1/8 inch x 1/2 inch rolled steel and fit just inside the bolt circle
